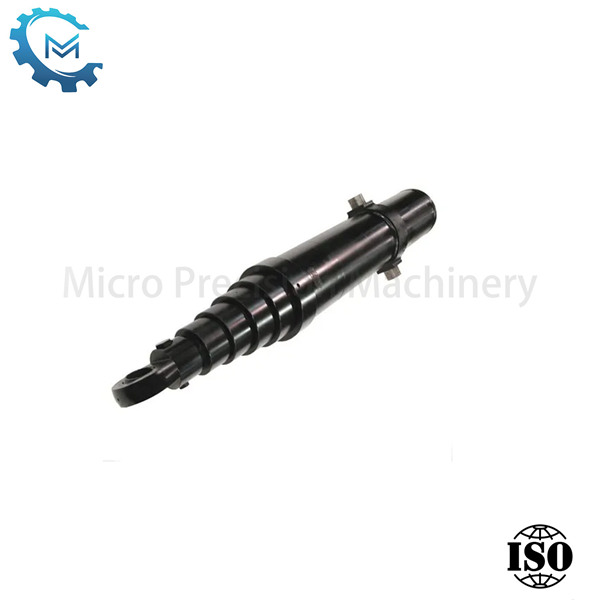

How does a multi-stage cylinder work?

As a manufacturer focusing on the R&D and production of hydraulic cylinders, we are well aware of the importance of multi-stage hydraulic cylinders in modern industry. Today, let us take you to learn more about multi-stage hydraulic cylinders.

1. Working principle of multi-stage hydraulic cylinder

(1) Hydraulic oil injection and pressure transmission

When the hydraulic system is started, the hydraulic oil enters the innermost cylinder of the cylinder through the oil inlet. Since the hydraulic oil is incompressible, the pressure of the oil will push the innermost piston outward. This process is based on Pascal's law, that is, the pressure of the liquid is evenly transmitted in a closed container.

(2) Step-by-step extension

As the innermost piston moves, the hydraulic oil will enter the next cylinder through the oil hole on the piston. Since the diameter of the next cylinder is larger, the hydraulic oil with the same pressure will produce a greater thrust, pushing the next piston outward. This process will be carried out step by step until all pistons are fully extended.

(3) Stroke control and retraction

The stroke of the multi-stage hydraulic cylinder can be precisely controlled by the control valve of the hydraulic system. When retraction is required, the hydraulic system will change the flow direction of the oil, so that the hydraulic oil will flow back from the outer cylinder to the inner cylinder step by step, and finally return to the oil tank of the hydraulic system. This process is also based on the pressure transmission of the hydraulic oil and the sealing performance of the piston.

(4) Intelligent Control

In order to improve the performance of multi-stage hydraulic cylinders, we introduced intelligent control technology into the design. By installing high-precision sensors inside the cylinder, we can monitor the working status of the cylinder in real time, including pressure, temperature and stroke position. These data can be sent to the control terminal through wireless transmission technology to achieve remote monitoring and fault warning.

2. Qingdao Micro Precision Machinery's high quality cylinders

(1) Precision machining and material selection

We use high-strength and high-wear-resistant alloy materials to manufacture pistons and cylinders to ensure the stability and durability of the cylinder under high-pressure working conditions. At the same time, we introduce advanced CNC machining equipment to ensure dimensional accuracy and surface quality.

(2) Sealing system optimization

We use advanced sealing technology to ensure that the hydraulic oil does not leak during operation and prevent external impurities from entering the cylinder. By optimizing the sealing structure and materials, the sealing performance and service life of the cylinder are greatly improved.

(3) Customer customization: meeting diverse needs

In the production process of hydraulic cylinders, we are always customer-oriented. We provide customized solutions for each customer. From design to production, to after-sales service, we are always committed to providing customers with the best products and services.

Conclusion

In short, as a hydraulic cylinder manufacturer, we are committed to making multi-stage hydraulic cylinders play a greater role in modern industry through technological innovation and high-quality services.
