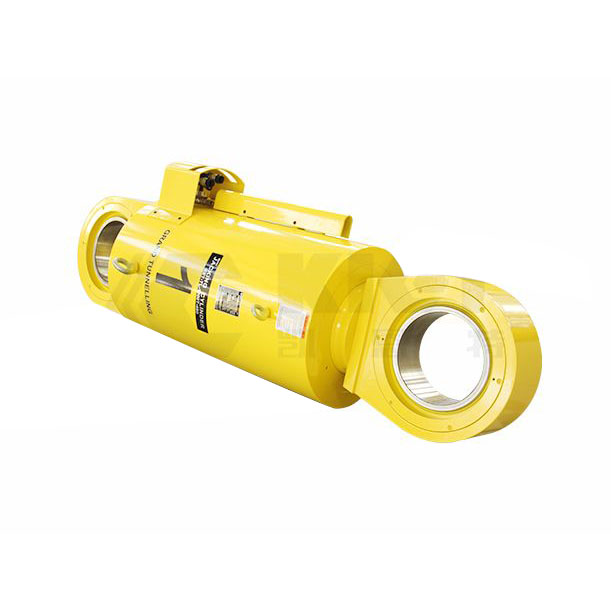

Excavator Bulldozer Hydraulic Cylinder

Excavator Bulldozer Hydraulic Cylinder is a device that converts hydraulic energy into mechanical energy, and is mainly used to achieve linear reciprocating motion or swinging motion. The hydraulic cylinder is mainly composed of a cylinder barrel, a cylinder head, a piston and a piston rod, a sealing device, etc. Its output force is proportional to the effective area of the piston and the pressure difference on both sides.

Send Inquiry

Product Description

Category:

Single rod piston hydraulic cylinder

Installation method:

Installation with earrings on both ends

Specifications:

Bore diameter range 50mm～140mm

Rod diameter range 25mm～80mm

Stroke range ≤260mm

Thrust; maximum 453KN (bore diameter 130mm/pressure 28.9MPa)

Material:

Ductile iron QT600-7 Q355D 20# steel, etc. Customer-specified steel models are accepted.

Oil seal brands:

Japanese NOK, Parker oil seal, MAPKER, Swedish SKF, equivalent brands, and accept customer-specified brands.

GET A QUOTATION NOW

Advantages:

- The structure of Excavator Bulldozer Hydraulic Cylinder is compact, using high-strength materials such as Ductile iron QT600-7 Q355D 20# steel and special heat treatment and welding processes to ensure that the bulldozer cylinder has extremely high fatigue durability under high pressure and heavy load.

- Adopting high-quality anti-corrosion treatment solutions such as Ni/Cr electroplating/ceramic spraying, laser cladding, QPQ, etc.

- The standard design temperature range is (-25℃～+120℃), and more parameters of cylinder customization services can be provided according to customer needs.

- Patented buffer design reduces the impact force of the bucket cylinder during excavation operations without reducing the excavation force.

- The integral die-forged earrings can be equipped with standard self-lubricating bushings, which are easy to install and can also be configured according to customer needs.
