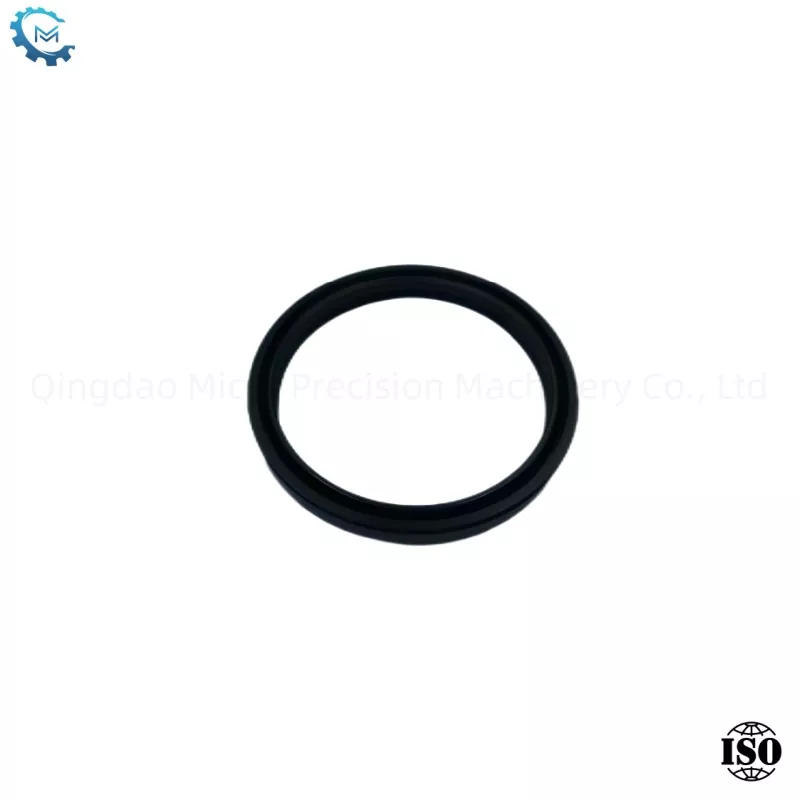

Dust Ring MPMDHS Series

Dust Ring MPMDHS Series are special rubber sealing rings used in hydraulic cylinders, vehicles, mechanical equipment, and construction machinery to prevent the intrusion of dust and dirt.

Send Inquiry

Product Description

Dust seals are generally used in conjunction with round rubber rings in some mechanical equipment and hydraulic piston systems. They are installed in the connection parts of the machinery to prevent external dust and dirt from entering the equipment. Especially in large excavators and bulldozers working in harsh environments, a large number of dust seals are required in the four-wheel area and hydraulic system to prevent mud and sand from intrusion and protect the machinery.

Product parameters:

Groove surface characteristics

Finish	Rtmax (um)	Ra (um)
SlidingSurface	≤2.5	0.1-0.5
GrooveBottom	≤6.3	≤1.6
GrooveSide	≤15	≤3

Dust Ring MPMDHS Series

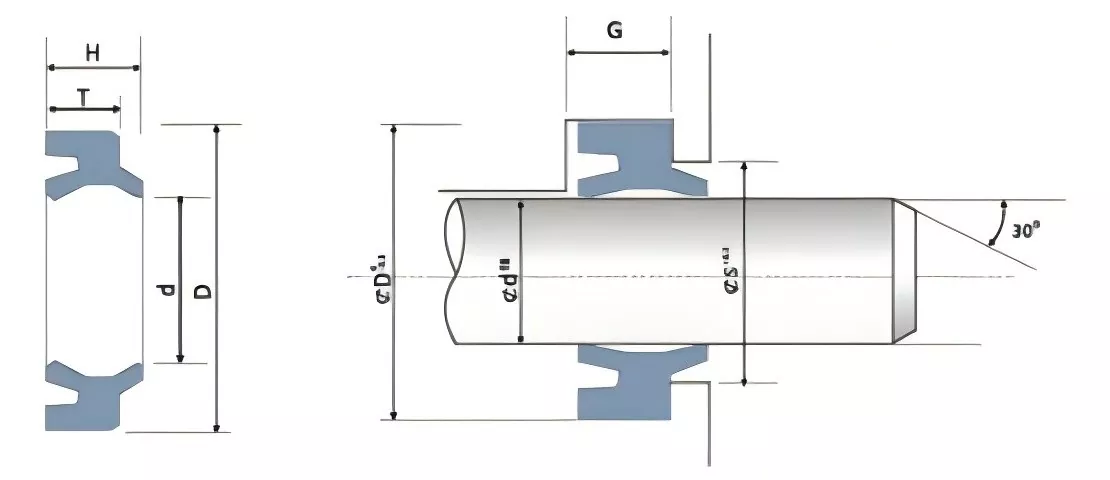

Model	Groove Size
Ref. No	φd	φD	φS	T	H	G	B
DHS0011B	11.2	19.2	15.5	4.5	6.0	5	2
DHS00012	12	20	16.3	4.5	6.0	5	2
DHS0012E	12.5	20.5	16.8	4.5	6.0	5	2
DHS00014	14	22	18.3	4.5	6.0	5	2
DHS00016	16	24	20.3	4.5	6.0	5	2
DHS00018	18	26	22.3	4.5	6.0	5	2
DHS00020	20	28	24.3	4.5	6.0	5	2
DHS00022	22	30	26.3	4.5	6.0	5	2
DHS00022D	22.4	30.4	26.7	4.5	6.0	5	2
DHS00023E	23.5	31.5	27.8	4.5	6.0	5	2
DHS00025	25	33	29.3	4.5	6.0	5	2
DHS00028	28	36	32.3	4.5	6.0	5	2
DHS00030	30	38	34	5	6.5	6	2
DHS00031E	31.5	39.5	35.5	5	6.5	6	2
DHS00032	32	40	36	5	6.5	6	2
DHS00035	35	43	39	5	6.5	6	2
DHS00035E	35.5	43.5	39.5	5	6.5	6	2
DHS00036	36	44	40	5	6.5	6	2
DHS00038	38	46	42	5	6.5	6	2
DHS00040	40	48	44	5	6.5	6	2
DHS00045	45	53	49	5	6.5	6	2
DHS00050	50	58	54	5	6.5	6	2
DHS00053	53	61	57	5	6.5	6	2
DHS00055	55	63	59	5	6.5	6	2
DHS00056	56	64	60	5	6.5	6	2
DHS00060	60	68	64	5	6.5	6	2
DHS00063	63	71	67	5	6.5	6	2
DHS00065	65	73	69	5	6.5	6	2
DHS00067	67	75	70	5	6.5	6	2
DHS00070	70	80	75	6	8.0	7	3
DHS00071	71	81	76	6	8.0	7	3
DHS00075	75	85	80	6	8.0	7	3
DHS00080	80	90	85	6	8.0	7	3
DHS00085	85	95	90	6	8.0	7	3
DHS00090	90	100	95	6	8.0	7	3
DHS00095	95	105	100	6	8.0	7	3
DHS00098	98	108	103	6	8.0	7	3
DHS00100	100	110	105	6	8.0	7	3
DHS00105	105	115	110	6	8.0	7	3
DHS00110	110	120	115	6	8.0	7	3
DHS00112	112	122	117	6	8.0	7	4
DHS00115	115	125	120	6	8.0	7	4
DHS00120	120	130	125	6	8.0	7	4
DHS10120	120	133	127	7	9.5	8	4
DHS00125	125	138	132	7	9.5	8	4
DHS00130	130	143	137	7	9.5	8	4
DHS00136	136	149	143	7	9.5	8	4
DHS00140	140	153	147	7	9.5	8	4
DHS00145	145	158	152	7	9.5	8	4
DHS00150	150	164	158	7	9.5	8	4
DHS00160	160	174	168	7	9.5	8	4
DHS00165	165	179	173	7	9.5	8	4
DHS00170	170	184	178	7	9.5	8	4
DHS00180	180	193	187	7	9.5	8	4
DHS10180	180	194	188	7	9.5	8	4
DHS00185	185	198	192	7	9.5	8	5
DHS00190	190	203	197	7	9.5	8	5
DHS00200	200	213	207	7	9.5	8	5
DHS00200	200	214	208	7	9.5	8	5
DHS00204	204	248	212	7	9.5	8	5
DHS00210	210	223	217	7	9.5	8	5
DHS00220	220	233	227	7	9.5	8	5
DHS00230	230	244	238	7	9.5	8	5
DHS00250	250	263	257	7	9.5	8	5

▶Features

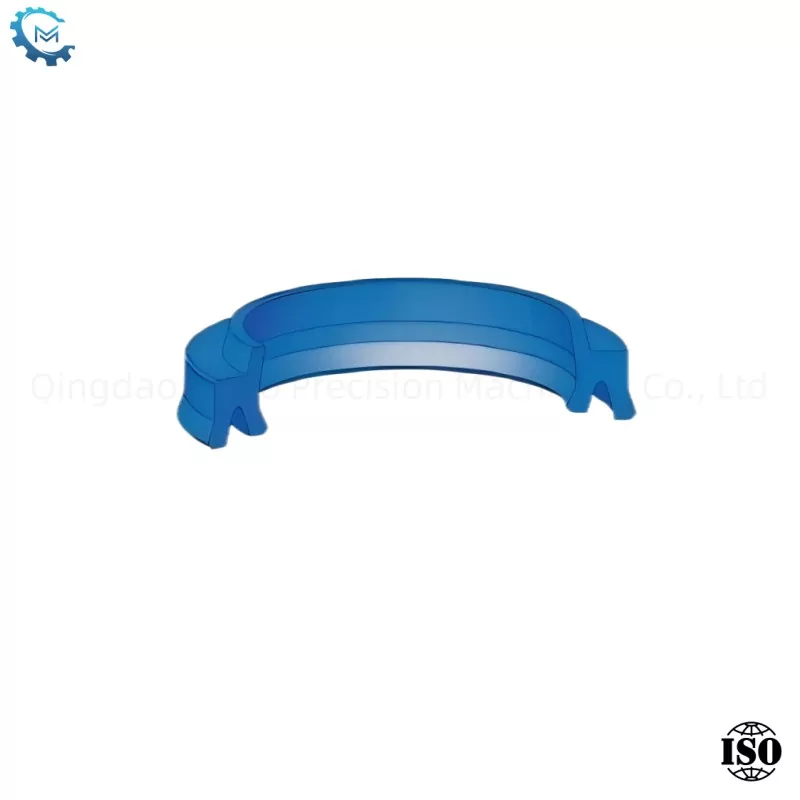

MPMDHS type is a seal with oil-proof lip and dust-proof lip.

▶Material

Polyurethane PU

▶Medium

Hydraulic oil, water, emulsion.

▶Working conditions

Operating speed: ≤1m/s

Working temperature: -35℃~+100℃
