What is a valve block?

Introduction

In the modern industrial field, hydraulic systems are widely used in machinery manufacturing, automobiles, engineering machinery and other industries due to their high efficiency, stability and precision. As one of the core components of the hydraulic system, the valve block not only determines the operating efficiency of the hydraulic system, but also directly affects the performance and reliability of the entire equipment.

1. Definition of valve block

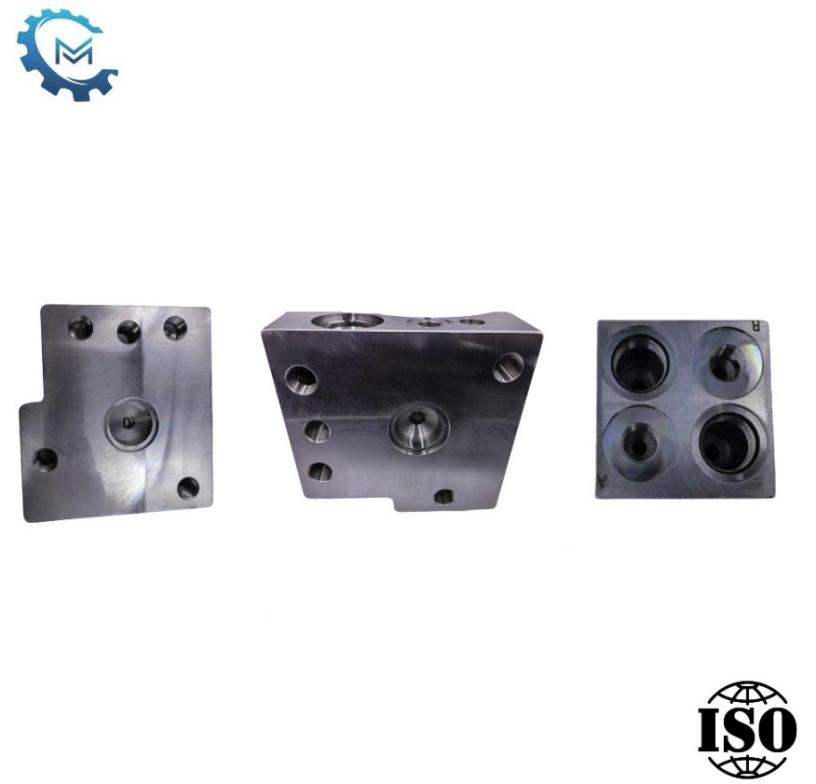

A valve block is a device that integrates multiple valves and other flow control components, usually made of a block of metal or alloy material. There are multiple holes and channels on the valve block, through which the flow of liquid or gas can be controlled and different working functions can be achieved.

2. Composition of valve block

Main body: The main body of the valve block is the framework of the entire device, usually a metal block, with complex flow channels designed inside to guide the flow of hydraulic oil.

Hydraulic valve: There are a variety of hydraulic valves installed on the valve block, including directional control valves, pressure control valves, and flow control valves. These valves achieve precise control of hydraulic oil through different combinations and configurations.

Connection channel: The flow channel design inside the valve block is one of its core technologies. These channels connect the various hydraulic valves to ensure that the hydraulic oil can flow efficiently and smoothly in the system.

Interface: The surface of the valve block usually has multiple interfaces for connecting other components of the hydraulic system, such as hydraulic pumps, hydraulic cylinders, etc.

3. Features and advantages of valve block

Integration: The valve block integrates multiple valves, pipes and other flow control components in a block structure. This integrated design reduces the number of connection points and pipe lengths in the system, reducing the risk of leakage and system complexity.

Compactness: The valve block achieves a compact layout of components through a highly integrated design. Compared with traditional individual valve assemblies, the valve block can significantly reduce the size and weight of the device.

Reliability: The integrated design of the valve block reduces the number of connection points and reduces the risk of leakage and failure. At the same time, the structure of the valve block is sturdy and durable, and can operate stably in harsh working environments.

Customizability: The holes and channels of the valve block can be customized according to specific application requirements. By changing the size, shape and position of the channel, different flow control and working functions can be achieved.

4. Application areas of valve blocks

Engineering machinery: such as excavators, loaders, etc., valve blocks are used to control the action of hydraulic cylinders and hydraulic motors to achieve the excavation, shoveling and other functions of the equipment.

Industrial automation: In automated production lines, valve blocks are used to control the action of hydraulic manipulators to achieve material handling and processing.

Aerospace: Valve blocks play an important role in the landing gear and flight control systems of aircraft, ensuring the high precision and high reliability of the system.

Automobile manufacturing: In the braking system and power steering system of automobiles, valve blocks are used to control the flow of hydraulic oil and improve the response speed and safety of the system.

Conclusion

Valve blocks are often used to control the flow, pressure and direction of fluids, and to achieve functions such as fluid distribution, cutting off, regulation and conversion. They are widely used in various industrial fields, including hydraulic systems, pneumatic systems, petroleum and chemical industries, energy industries, manufacturing industries, etc. Valve blocks provide great power for industrial manufacturing.
