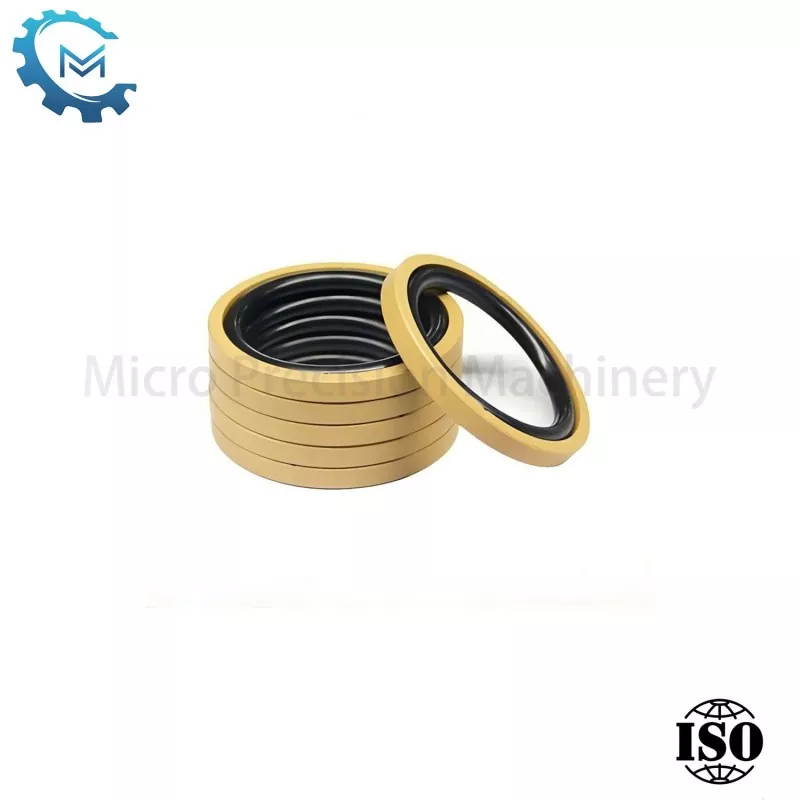

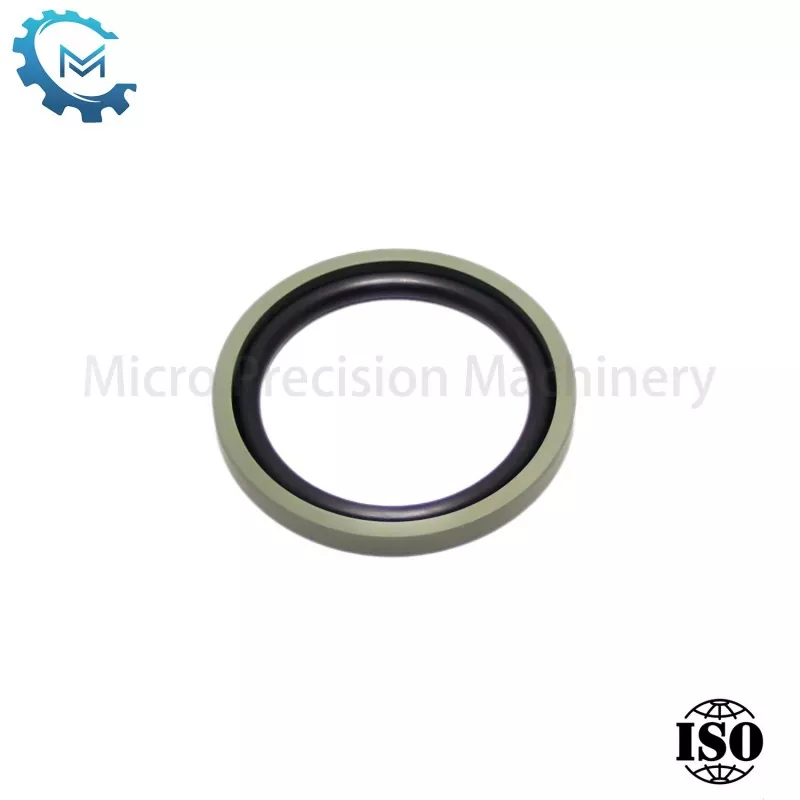

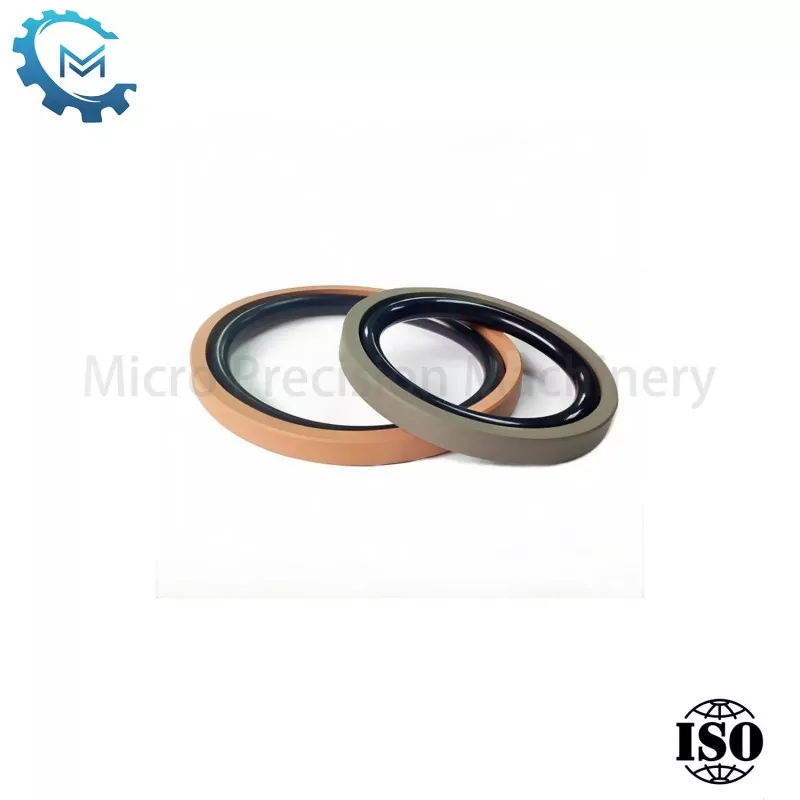

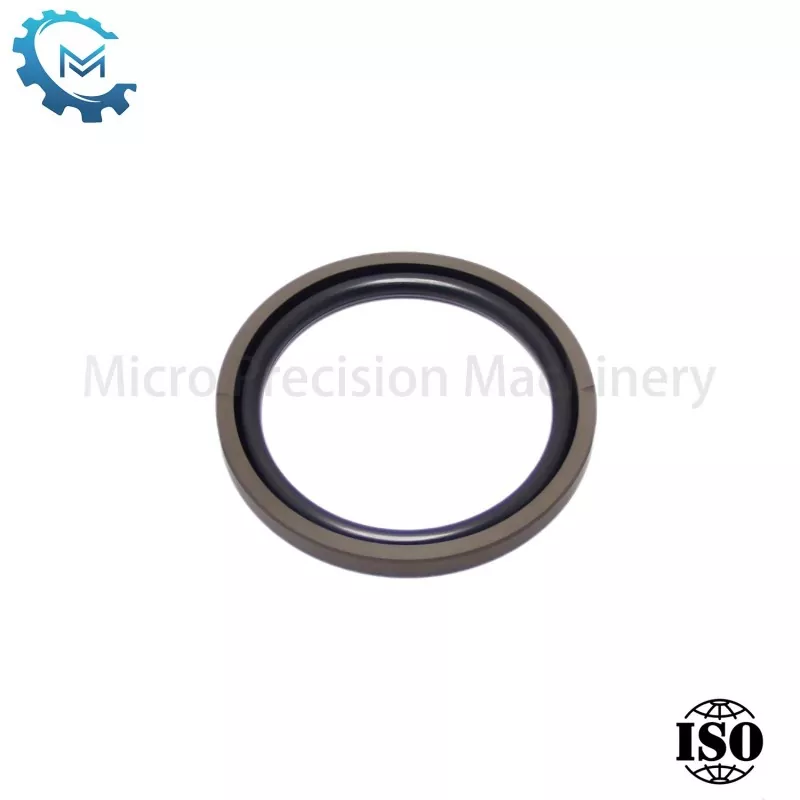

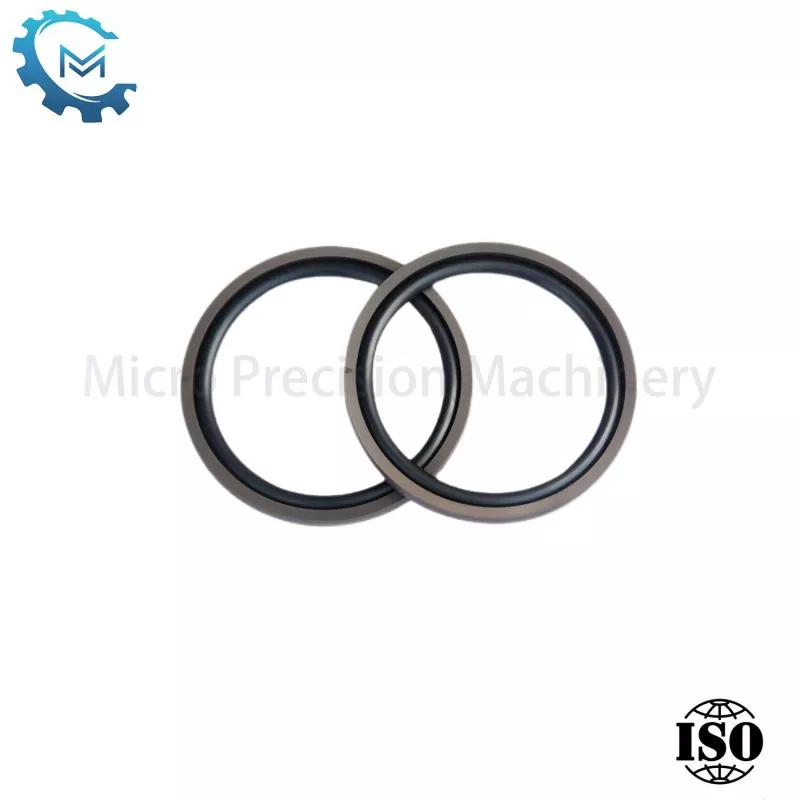

Glyd Ring for Piston

Glyd ring for piston is composed of a rubber O-ring and a PTFE ring. The O-ring applies force and the Glyd ring is a double-acting piston seal. It has low friction, no creeping, small starting force, and high pressure resistance. It can be divided into Glyd rings for holes and Glyd rings for shafts.

Send Inquiry

Product Description

Glyd Rings for Piston are mainly used in hydraulic cylinder sealing systems. Whether used on pistons or piston rods, they have received good reviews. This type of seal is mainly composed of two components, a Turkon ring and an O-ring. Glyd rings are double-acting seals.

Product parameters:


Technical Data
	Pressure	Temperature	Sliding Speed	Medium
Standard	≤60MPa	-45 - 200℃	≤15m/s	Minderal oil based hydraulic fluids, barely flammable hydraulic fluids, water, air, and others.

Material			Standard Or Can Fit The Groove
	O Ring	Slide Ring	Meets the standard of 1S0 7425/1 GB/T1542.1-94GB/T1542.3-94.
Design Standard	NBR	PTFE - Bronze
Special Standard	FKM	PTFE - Carbon

Pressure	160bar	250bar		400bar
Max Gape	E≤0.6mm	E≤0.4mm		E≤0.2mm

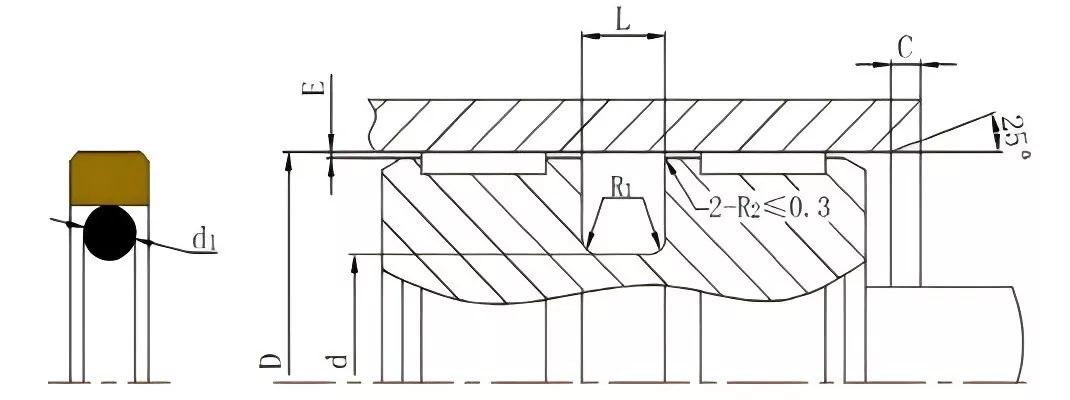

Installation Dimension Table Based On Metric Size (mm)

Diameter (D) H9	GrooveBottomd H9	Slot Width L +0.2	O-ring wire d1	C≥	R1≤
8 ~ 24	D-4.9	2.2	1.8	2	0.4
15 ~ 48	D-7.5	3.2	2.65	2	0.4
25 ~ 110	D-11	4.2	3.55	3	0.8
50 ~ 140	D-15.5	6.3	5.3	5	1.2
125 ~ 320	D-21	8.1	7	7.5	1.6
330 ~ 660	D-24.5	8.1	7	8	1.6
670 ~ 990	D-28	9.5	8.4	8	1.6
1000 ~ 1500	D-28	13.8	12	8.5	2

Features of Glyd Ring:

Low friction resistance, no creeping phenomenon;

Both dynamic and static sealing effects are quite good;

Glyd Ring for hole is a bidirectional sealing ring for piston outer diameter. It is installed with an O-ring and works together. It has the characteristics of low friction resistance, no creeping, wear resistance, and long service life. Dynamic and static sealing effects are excellent.

Component:

1.O-Ring: NBR or FKM

2. Anti-wear ring: filled with PTFE - Bronze, or PTFE - Carbon

Description:

The surface of the anti-wear ring can be processed with grooves, single-sided grooves or double-sided grooves

Application:

Hydraulic equipment, standard cylinders, machine tools, injection machines, hydraulic presses.
